A ConnectionHub combines a TCP connection with a MessageHub to enable the forwarding and receiving of messages over a network connection. More...

#include <ConnectionHub.h>

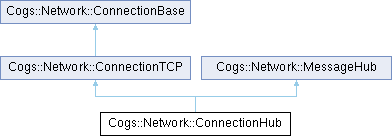

Inheritance diagram for Cogs::Network::ConnectionHub:

Classes
struct	Header

Public Member Functions
	ConnectionHub (uint32_t id)

	ConnectionHub (Socket socket, const SockaddrIn &addr)

virtual bool	processOutgoing () override

virtual bool	processIncoming () override
	Manages accepting incoming connections when this connection is a listener.

Public Member Functions inherited from Cogs::Network::ConnectionTCP
	ConnectionTCP ()

	ConnectionTCP (Socket socket, const SockaddrIn &addr)
	Constructs a connection that is attached to the specified socket.

virtual	~ConnectionTCP ()
	Destroys this connection.

SocketType	type () const override

IPProto	proto () const override

void	enableAutoReconnect ()

void	disableAutoReconnect ()

virtual bool	isAutoConnectEnabled () const override

virtual bool	isConnected () const override

void	setConnectTimeout (int64_t milliseconds)

void	setNoDelay (bool val=true)
	Set the TCP_NODELAY flag (Enable / Disables Nagles algorithm).

void	shutdown ()
	Shutdown this connection.

virtual bool	connect (const SockaddrIn &addr)
	Sets up this connection ready to connect to the specified remote address and port.

virtual bool	reconnect () override
	Reconnects this connection to the remote host previously specified through a call to connect.

virtual bool	disconnect () override
	Disconnects this connection.

bool	listen (uint16_t port)

bool	listen (AddrIn ip, uint16_t port)
	Sets this connection up as a listener that will listen for and respond to incoming connection requests on the specified port.

virtual bool	processIncoming () override
	Manages accepting incoming connections when this connection is a listener.

virtual ConnectionTCP *	accept (Socket, const SockaddrIn &)

Public Member Functions inherited from Cogs::Network::ConnectionBase
	ConnectionBase ()

virtual	~ConnectionBase ()

Family	family () const

virtual SocketType	type () const =0

virtual IPProto	proto () const =0

Socket	getSocket () const

void	remove ()

void	removeAndDelete ()

const SockaddrIn &	getAddress () const

int64_t	getReconnectTime () const

virtual bool	isAutoConnectEnabled () const

virtual bool	isConnected () const

bool	shouldRemove () const

bool	shouldDelete () const

void	setNonblocking (bool val=true)
	Sets socket non-blocking mode to val.

void	setDoNotProcess ()

virtual bool	reconnect ()

virtual bool	disconnect ()=0

bool	bind (uint16_t port)

virtual bool	bind (AddrIn ip, uint16_t port)
	Sets this connection up as a listener that will listen for and respond to incoming connection requests on the specified port.

bool	send (const void *data, uint64_t byteCount, uint64_t &bytesSent)
	Attempts to send as much of the specified data as possible.

bool	receive (void *buffer, uint64_t byteCount, uint64_t &bytesReceived)
	Attempts to read the specified number of bytes from the network socket this connection represents.

bool	sendTo (const void *data, uint64_t byteCount, uint64_t &bytesSent, const SockaddrIn &addr)
	Attempts to send as much of the specified data as possible.

bool	recvFrom (void *buffer, uint64_t byteCount, uint64_t &bytesReceived, SockaddrIn &addr)
	Attempts to read the specified number of bytes from the network socket this connection represents.

virtual bool	processOutgoing ()

virtual bool	processIncoming ()

Public Member Functions inherited from Cogs::Network::MessageHub
	MessageHub (uint32_t ident=0)
	Constructs a new MessageHub instance and adds it to the global hub list.

virtual	~MessageHub ()
	Removes this MessageHub from the global list and cleans up all connections to and from this hub.

bool	addListener (MessageHub *hub, bool bidirectional=false)
	Adds the specified hub as a listener to this hub.

bool	addListener (uint32_t hubid, bool bidirectional=false)
	Attempts to add the hub with the given ID as a listener to this hub.

bool	listenTo (MessageHub *hub, bool bidirectional=false)
	Sets this MessageHub up to listen for messages from the specified hub.

bool	listenTo (uint32_t hubid, bool bidirectional=false)
	Sets up this MessageHub to listen for messages from the hub with the specified ID (if a matching hub can be found).

bool	removeListener (MessageHub *hub)
	Removes the specified hub as a listener to this hub.

bool	removeListener (uint32_t hubid)
	Removes the hub with the given ID as a listener to this hub.

void	removeAllListeners ()
	Removes all listeners from this hub.

void	disconnectFromSender (uint32_t hubid)
	Disconnects this hub from the specified hub to which it is listening.

void	disconnectFromAllSenders ()
	Disconnects this hub from all hubs to which it is listening.

virtual void	broadcastMessage (const Message::Ptr &message)
	Broadcast message to all hubs.

virtual void	sendMessage (const Message::Ptr &message)
	Send message to all hubs listening to this one.

virtual void	queueMessage (const Message::Ptr &message)
	Queue a message for this hub to process.

virtual bool	processMessages (size_t limit=noLimit)
	Process all queued messages for this hub.

virtual bool	isSendOnly () const

uint32_t	getID () const

size_t	getNoOfQueuedMessages ()
	Retrieves the number of messages currently awaiting processing by this hub.

void	flushQueuedMessages ()
	Flushes all pending messages from this hub without processing them.

Protected Member Functions
virtual void	handleReceivedMessage (const Message::Ptr &message)

virtual bool	disconnect () override
	Called in response to a problem with the network, or a request by the application to disconnect.

Protected Member Functions inherited from Cogs::Network::ConnectionBase
void	create ()
	Internal wrapper for the socket() call.

void	close ()
	Internal wrapper for closing the socket.

Protected Member Functions inherited from Cogs::Network::MessageHub
Message::Ptr	getNextMessage ()
	Retrieves the next pending message.

Private Attributes
Message::Ptr	outgoingMessage

uint64_t	bytesSent = 0

Message::Ptr	incomingMessage

Header	incomingHeader

Additional Inherited Members
Public Types inherited from Cogs::Network::MessageHub
using	MessageQueue = std::deque< Message::Ptr >

using	HubList = std::vector< MessageHub * >

Static Public Attributes inherited from Cogs::Network::MessageHub
static constexpr size_t	noLimit = 10000000

Protected Attributes inherited from Cogs::Network::ConnectionBase
Cogs::Atomic< uint32_t >	flags = 0

int64_t	reconnectTime = 0

Socket	socket = InvalidSocket

SockaddrIn	sockAddr = {}

Static Protected Attributes inherited from Cogs::Network::ConnectionBase
static constexpr uint32_t	cRemove = 0x00000001

static constexpr uint32_t	cDelete = 0x00000002

static constexpr uint32_t	cDoNotProcess = 0x00000004

Detailed Description

A ConnectionHub combines a TCP connection with a MessageHub to enable the forwarding and receiving of messages over a network connection.

Queued messages in the hub will be transmitted over the network. Received messages will be forwarded to local listeners for processing.

Constructor & Destructor Documentation

◆ ConnectionHub() [1/2]

Cogs::Network::ConnectionHub::ConnectionHub ( uint32_t id )

inline

◆ ConnectionHub() [2/2]

Cogs::Network::ConnectionHub::ConnectionHub	(	Socket	socket,
		const SockaddrIn &	addr
	)

inline

Member Function Documentation

◆ disconnect()

bool Cogs::Network::ConnectionHub::disconnect ( )

overrideprotectedvirtual

Called in response to a problem with the network, or a request by the application to disconnect.

Resets the state of this hub, before calling ConnectionTCP::disconnect. *============================================================================================

Reimplemented from Cogs::Network::ConnectionTCP.

References Cogs::Network::ConnectionTCP::disconnect().

Referenced by processOutgoing().
