The transform system handles TransformComponent instances, calculating local and global transform data for each component. More...

#include <TransformSystem.h>

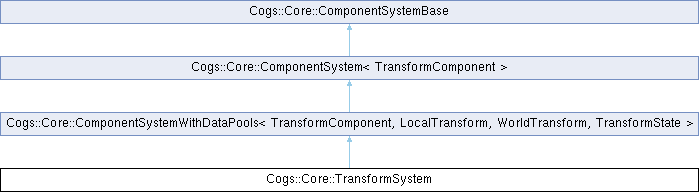

Inheritance diagram for Cogs::Core::TransformSystem:

Public Member Functions
	TransformSystem (Memory::Allocator *allocator, SizeType capacity)

void	handleOriginUpdate (class Context *context)

void	update (class Context *context) override
	Updates the transform system.

void	updateLocalTransform (const TransformComponent &component)

void	setLocalTransform (TransformComponent *component, const glm::mat4 &matrix)

void	updateTransformData (const TransformComponent &component)
	Force an update of the transform data associated with the given component.

void	setOrigin (const glm::dvec3 &newOrigin)
	Sets the Origin offset of the scene.

glm::dvec3	getOrigin () const
	Gets the Origin offset of the scene.

glm::mat4 &	getLocalToWorld (const TransformComponent *component)

glm::mat4 &	getLocalTransform (const TransformComponent *component)

void	setTransform (TransformComponent *component, glm::mat4 transformMatrix)

void	copyTransform (const TransformComponent source, TransformComponent destination)

bool	hasChanged (const TransformComponent *component)

void	updateLocalToWorldTransform (const TransformComponent &component, bool dirty=false)

glm::vec3	engineFromWorldCoords (glm::dvec3 c)

glm::dvec3	worldFromEngineCoords (glm::vec3 c)

Public Member Functions inherited from Cogs::Core::ComponentSystemWithDataPools< TransformComponent, LocalTransform, WorldTransform, TransformState >
	ComponentSystemWithDataPools (Memory::Allocator *allocator, SizeType size=1024, MemBlockType componentMemType=MemBlockType::Component, MemBlockType dataMemType=MemBlockType::ComponentData)

ComponentHandle	createComponent () override

void	destroyComponent (ComponentHandle component) override

T &	getData (const TransformComponent *component)
	Get the data stored for the given component from the data pool storing objects of the specified template type.

const T &	getData (const TransformComponent *component) const
	Get the const data stored for the given component from the data pool storing objects of the specified template type.

Public Member Functions inherited from Cogs::Core::ComponentSystem< ComponentType >
	ComponentSystem (Memory::Allocator *allocator, SizeType size=16384, MemBlockType componentMemType=MemBlockType::Component)

void	instrumentedPreUpdate () override
	Provided for tagged engine instrumentation.

void	instrumentedUpdate () override
	Provided for tagged engine instrumentation.

void	instrumentedPostUpdate () override
	Provided for tagged engine instrumentation.

ComponentHandle	createComponent () override
	Create a new component instance.

void	destroyComponent (ComponentHandle component) override
	Destroy the component held by the given handle.

SizeType	getComponentIndex (const Component *component) const
	Get the index of the given component in the component pool.

size_t	size ()
	Returns the number of active components.

void	clearCarryFlags ()
	Clear carry flags of all active components.

void	resetFlags ()
	Reset the flags of all active components.

void	prepareUpdate (Context *) override

void	postUpdate (Context *) override

ComponentHandle	getHandle (const ComponentType *component)
	Get a handle to the given Component instance.

virtual void	addEntitiesWithComponent (std::vector< EntityId > &entities, Reflection::TypeId componentTypeId) override
	Return all entities with a given.

Public Member Functions inherited from Cogs::Core::ComponentSystemBase
virtual	~ComponentSystemBase ()
	Provided for destruction via pointer to base.

	ComponentSystemBase (Reflection::TypeId componentType)
	Constructs a ComponentSystemBase to manage components of the given componentType.

virtual void	initialize (Context *context)
	Initialize the system.

void	preUpdate ()
	Run the pre-update method of the system.

void	update ()
	Updates the system state to that of the current frame.

void	postUpdate ()
	Perform post update logic in the system.

virtual void	preUpdate (Context *)
	Provided for custom pre update logic in derived systems.

virtual void	prepareUpdate (Context *)
	Provided for custom update preparation logic in derived systems.

virtual void	update (Context *)
	Provided for custom update logic in derived systems.

virtual void	postUpdate (Context *)
	Provided for custom post update logic in derived systems.

virtual void	instrumentedPreUpdate ()
	Provided for tagged engine instrumentation.

virtual void	instrumentedUpdate ()
	Provided for tagged engine instrumentation.

virtual void	instrumentedPostUpdate ()
	Provided for tagged engine instrumentation.

virtual void	addEntitiesWithComponent (std::vector< EntityId > &, Reflection::TypeId)
	Return all entities with a given.

virtual void	cleanup (Context *)
	Provided for custom cleanup logic in derived systems.

virtual ComponentHandle	createComponent ()
	Create a new component instance.

virtual void	destroyComponent (ComponentHandle)
	Destroy the component held by the given handle.

Reflection::TypeId	getComponentType () const
	Get the reflected type of the components managed by this system.

Private Attributes
glm::dvec3	origin = glm::dvec3(0.0)
	Current origin, kept fixed during the frame.

glm::dvec3	originUpdate = glm::dvec3(0.0)
	Is set by setOrigin and swapped in before updates.

Additional Inherited Members
Public Types inherited from Cogs::Core::ComponentSystem< ComponentType >
typedef ComponentType	component_type

Static Public Member Functions inherited from Cogs::Core::ComponentSystem< ComponentType >
static Reflection::TypeId	getTypeId ()
	Get the type id of the component type used by the system.

Public Attributes inherited from Cogs::Core::ComponentSystem< ComponentType >
ComponentPool< ComponentType >	pool
	Pool of components managed by the system.

Public Attributes inherited from Cogs::Core::ComponentSystemBase
Reflection::TypeId	componentType
	The type of components managed by this instance.

Context *	context = nullptr
	Pointer to the Context instance the system lives in.

Detailed Description

The transform system handles TransformComponent instances, calculating local and global transform data for each component.

Definition at line 35 of file TransformSystem.h.

Constructor & Destructor Documentation

◆ TransformSystem()

Cogs::Core::TransformSystem::TransformSystem	(	Memory::Allocator *	allocator,
		SizeType	capacity
	)

inline

Definition at line 38 of file TransformSystem.h.

Member Function Documentation

◆ copyTransform()

void Cogs::Core::TransformSystem::copyTransform	(	const TransformComponent *	source,
		TransformComponent *	destination
	)

inline

Definition at line 96 of file TransformSystem.h.

◆ engineFromWorldCoords()

glm::vec3 Cogs::Core::TransformSystem::engineFromWorldCoords ( glm::dvec3 c )

inline

Definition at line 108 of file TransformSystem.h.

◆ getLocalToWorld()

glm::mat4 & Cogs::Core::TransformSystem::getLocalToWorld ( const TransformComponent * component )

inline

Definition at line 79 of file TransformSystem.h.

◆ getLocalTransform()

glm::mat4 & Cogs::Core::TransformSystem::getLocalTransform ( const TransformComponent * component )

inline

Definition at line 84 of file TransformSystem.h.

◆ getOrigin()

glm::dvec3 Cogs::Core::TransformSystem::getOrigin ( ) const

inline

Gets the Origin offset of the scene.

Definition at line 77 of file TransformSystem.h.

Referenced by Cogs::Core::TerrainBounds::getBounds(), and Cogs::Core::RigidBodySystem::update().

◆ handleOriginUpdate()

void Cogs::Core::TransformSystem::handleOriginUpdate ( class Context * context )

Definition at line 78 of file TransformSystem.cpp.

◆ hasChanged()

bool Cogs::Core::TransformSystem::hasChanged ( const TransformComponent * component )

inline

Definition at line 101 of file TransformSystem.h.

◆ setLocalTransform()

void Cogs::Core::TransformSystem::setLocalTransform	(	TransformComponent *	component,
		const glm::mat4 &	matrix
	)

Definition at line 92 of file TransformSystem.cpp.

◆ setOrigin()

void Cogs::Core::TransformSystem::setOrigin ( const glm::dvec3 & newOrigin )

inline

Sets the Origin offset of the scene.

Definition at line 74 of file TransformSystem.h.

◆ setTransform()

void Cogs::Core::TransformSystem::setTransform	(	TransformComponent *	component,
		glm::mat4	transformMatrix
	)

inline

Definition at line 89 of file TransformSystem.h.

◆ update()

void Cogs::Core::TransformSystem::update ( class Context * context )

overridevirtual

Updates the transform system.

Reimplemented from Cogs::Core::ComponentSystemBase.

Definition at line 34 of file TransformSystem.cpp.

References Cogs::Core::ComponentSystemBase::context, Cogs::Core::Context::engine, Cogs::ComponentModel::Component::hasChanged(), Cogs::Core::ComponentSystem< ComponentType >::pool, and Cogs::Core::Context::taskManager.

◆ updateLocalToWorldTransform()

void Cogs::Core::TransformSystem::updateLocalToWorldTransform	(	const TransformComponent &	component,
		bool	dirty = `false`
	)

Definition at line 156 of file TransformSystem.cpp.

◆ updateLocalTransform()

void Cogs::Core::TransformSystem::updateLocalTransform ( const TransformComponent & component )

inline

Definition at line 45 of file TransformSystem.h.

◆ updateTransformData()

void Cogs::Core::TransformSystem::updateTransformData ( const TransformComponent & component )

inline

Force an update of the transform data associated with the given component.

Definition at line 65 of file TransformSystem.h.

Referenced by Cogs::Core::ClipShapeSystem::preUpdate(), Cogs::Core::TrajectoryLayoutSystem::update(), Cogs::Core::EchoSounder::PingIsoSystem::update(), and Cogs::Core::AdaptivePlanarGridSystem::update().

◆ worldFromEngineCoords()

glm::dvec3 Cogs::Core::TransformSystem::worldFromEngineCoords ( glm::vec3 c )

inline

Definition at line 109 of file TransformSystem.h.

Member Data Documentation

◆ origin

glm::dvec3 Cogs::Core::TransformSystem::origin = glm::dvec3(0.0)

private

Current origin, kept fixed during the frame.

Definition at line 112 of file TransformSystem.h.

◆ originUpdate

glm::dvec3 Cogs::Core::TransformSystem::originUpdate = glm::dvec3(0.0)

private

Is set by setOrigin and swapped in before updates.

Definition at line 113 of file TransformSystem.h.

The documentation for this class was generated from the following files:

Source/Systems/Core/TransformSystem.h
Source/Systems/Core/TransformSystem.cpp
