Provides buffer management functionality. More...

#include <IBuffers.h>

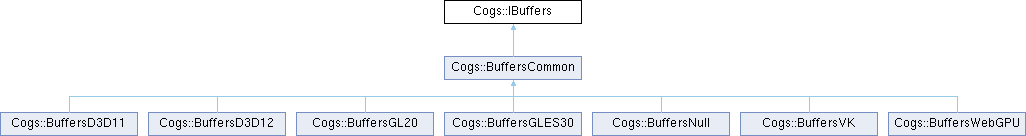

Inheritance diagram for Cogs::IBuffers:

Public Member Functions
virtual void	annotate (BufferHandle handle, const StringView &name)
	Associate a name with an object for use in graphics debugging.

virtual void	annotate (VertexBufferHandle handle, const StringView &name)
	Associate a name with an object for use in graphics debugging.

virtual VertexBufferHandle	loadVertexBuffer (const void *vertexData, const size_t count, const VertexFormat &vertexFormat)=0
	Loads a new vertex buffer and populates it with the given data.

virtual VertexBufferHandle	loadVertexBuffer (const void *vertexData, const size_t count, VertexFormatHandle vertexFormatHandle)=0

virtual void	releaseVertexBuffer (VertexBufferHandle vertexBufferHandle)=0
	Release the vertex buffer with the given handle.

virtual IndexBufferHandle	loadIndexBuffer (const void *indexData, const size_t count, const size_t indexSize)=0
	Loads a new index buffer and populates it with the given indexData.

virtual void	releaseIndexBuffer (IndexBufferHandle indexBufferHandle)=0
	Releases the index buffer with the given handle.

virtual VertexArrayObjectHandle	loadVertexArrayObject (const EffectHandle effectHandle, const VertexBufferHandle vertexBufferHandles, const size_t vertexBufferCount, const VertexFormat const vertexFormats=nullptr, const uint32_t vertexBufferStrides=nullptr, const uint32_t *vertexBufferOffsets=nullptr, const IndexBufferHandle indexBufferHandle=IndexBufferHandle::NoHandle, uint32_t indexBufferStride=0)=0
	Create a vertex array object that encapsulates binding of a set of vertex buffers and an optional index buffer.

virtual void	releaseVertexArrayObject (VertexArrayObjectHandle vertexArrayObjectHandle)=0
	Releases the vertex array object with the given handle.

virtual InputLayoutHandle	loadInputLayout (const VertexFormatHandle *vertexFormats, const size_t count, EffectHandle effectHandle)=0
	Loads a new input layout to map vertex flow between vertex buffers with the given vertexFormats to effects using the vertex layout of the given effectHandle.

virtual void	releaseInputLayout (InputLayoutHandle inputLayoutHandle)=0
	Releases the input layout with the given inputLayoutHandle.

virtual BufferHandle	loadBuffer (const void *data, const size_t size, Usage::EUsage usage, uint32_t accessMode, uint32_t bindFlags, uint32_t stride=0)=0
	Loads a new buffer using the given data to populate the buffer.

virtual VertexFormatHandle	createVertexFormat (const VertexElement *elements, size_t count)=0

virtual const VertexFormat *	getVertexFormat (VertexFormatHandle handle)=0

virtual void	retrieveSubBuffer (void *data, BufferHandle source, const size_t offset, const size_t size)=0
	Retrieves the contents of a buffer.

virtual void	releaseBuffer (BufferHandle bufferHandle)=0
	Releases the buffer with the given bufferHandle.

virtual void *	getNativeHandle (BufferHandle bufferHandle)=0
	Get the device-specific handle (D3D buffer pointer, OpenGL buffer ID etc) associated with the given buffer handle.

virtual void	releaseResources ()=0
	Releases all allocated buffer resources.

Detailed Description

Provides buffer management functionality.

Definition at line 12 of file IBuffers.h.

Member Function Documentation

◆ annotate() [1/2]

virtual void Cogs::IBuffers::annotate	(	BufferHandle	handle,
		const StringView &	name
	)

inlinevirtual

Associate a name with an object for use in graphics debugging.

Reimplemented in Cogs::BuffersD3D11, and Cogs::BuffersGL20.

Definition at line 17 of file IBuffers.h.

◆ annotate() [2/2]

virtual void Cogs::IBuffers::annotate	(	VertexBufferHandle	handle,
		const StringView &	name
	)

inlinevirtual

Associate a name with an object for use in graphics debugging.

Reimplemented in Cogs::BuffersD3D11, and Cogs::BuffersGL20.

Definition at line 22 of file IBuffers.h.

◆ getNativeHandle()

virtual void * Cogs::IBuffers::getNativeHandle ( BufferHandle bufferHandle )

pure virtual

Get the device-specific handle (D3D buffer pointer, OpenGL buffer ID etc) associated with the given buffer handle.

Parameters

bufferHandle Valid handle to a previously created buffer object.

Returns: Native handle

Implemented in Cogs::BuffersD3D11, Cogs::BuffersD3D12, Cogs::BuffersNull, Cogs::BuffersGL20, Cogs::BuffersGLES30, Cogs::BuffersVK, and Cogs::BuffersWebGPU.

◆ loadBuffer()

virtual BufferHandle Cogs::IBuffers::loadBuffer	(	const void *	data,
		const size_t	size,
		Usage::EUsage	usage,
		uint32_t	accessMode,
		uint32_t	bindFlags,
		uint32_t	stride = `0`
	)

pure virtual

Loads a new buffer using the given data to populate the buffer.

Parameters

data	Pointer to data used to populate the buffer. Must be at least size number of bytes.
size	Size of the buffer to create in bytes.
usage	Usage flags for the buffer. Specifies how the buffer is intended to be used.
accessMode	Access mode flags for the buffer. Specifies how the buffer can be accessed at a later time.
bindFlags	Binding flags specifying how the buffer can be bound to the pipeline at a later state.

Returns: Handle to a new buffer, InvalidHandle if no buffer could be created with the given parameters.

See also: Usage, AccessMode, BindFlags

Implemented in Cogs::BuffersNull, Cogs::BuffersWebGPU, Cogs::BuffersD3D11, Cogs::BuffersD3D12, Cogs::BuffersGL20, Cogs::BuffersGLES30, and Cogs::BuffersVK.

Referenced by Cogs::Core::Image360::RendererExtension::handleEvent(), Cogs::Core::PotreeRenderer::handleEvent(), and Cogs::EffectsGL20::loadComputeEffect().

◆ loadIndexBuffer()

virtual IndexBufferHandle Cogs::IBuffers::loadIndexBuffer	(	const void *	indexData,
		const size_t	count,
		const size_t	indexSize
	)

pure virtual

Loads a new index buffer and populates it with the given indexData.

The size of the buffer (if given) must be at least indexSize * count.

Parameters

indexData	Pointer to index data in memory, or nullptr to initialize an empty index buffer.
count	Number of indexes given.
indexSize	Size of an index in bytes.

Returns: Handle to the loaded index buffer, InvalidHandle if the operation failed.

Implemented in Cogs::BuffersNull, Cogs::BuffersWebGPU, Cogs::BuffersGL20, Cogs::BuffersGLES30, Cogs::BuffersVK, Cogs::BuffersD3D11, and Cogs::BuffersD3D12.

Referenced by Cogs::Core::SeaCurrentsRenderer::initialize(), and Cogs::Core::Volumetric::OctRenderer::initialize().

◆ loadInputLayout()

virtual InputLayoutHandle Cogs::IBuffers::loadInputLayout	(	const VertexFormatHandle *	vertexFormats,
		const size_t	count,
		EffectHandle	effectHandle
	)

pure virtual

Loads a new input layout to map vertex flow between vertex buffers with the given vertexFormats to effects using the vertex layout of the given effectHandle.

Parameters

vertexFormats	Pointer to an array of pointers to vertex formats. One for each vertex buffer that in sum describes total vertex data.
count	Number of vertex formats given.
effectHandle	Handle to a valid effect containing a valid vertex shader. The input requirements of the vertex shader is used to specify the flow of vertex data from the vertex buffer(s) specified by vertexFormats into the shader stage.

Returns: Handle to a new input layout object, InvalidHandle if no valid input layout could be created.

Implemented in Cogs::BuffersD3D12, Cogs::BuffersD3D11, Cogs::BuffersNull, Cogs::BuffersGL20, Cogs::BuffersGLES30, Cogs::BuffersVK, and Cogs::BuffersWebGPU.

◆ loadVertexArrayObject()

virtual VertexArrayObjectHandle Cogs::IBuffers::loadVertexArrayObject	(	const EffectHandle	effectHandle,
		const VertexBufferHandle *	vertexBufferHandles,
		const size_t	vertexBufferCount,
		const VertexFormat const	vertexFormats = `nullptr`,
		const uint32_t *	vertexBufferStrides = `nullptr`,
		const uint32_t *	vertexBufferOffsets = `nullptr`,
		const IndexBufferHandle	indexBufferHandle = `IndexBufferHandle::NoHandle`,
		uint32_t	indexBufferStride = `0`
	)

pure virtual

Create a vertex array object that encapsulates binding of a set of vertex buffers and an optional index buffer.

Parameters

effectHandle	Effect to use this vao with.
vertexBufferHandles	Pointer to an array containing the vertex buffer handles to use.
vertexBufferCount	Number of vertex buffer handles.
vertexBufferStrides	Pointer to an array of strides to use, one per vertex buffer, can be null or contain zero to use strides from buffer.
vertexBufferOffsets	Pointer to an array of additional offsets to use, one per vertex buffer, can be null or contain zero to indicate no offset.
indexBufferHandle	An optional handle to an index buffer.
indexBufferStride	An optional stride to use for the index buffer, zero indicates using stride from buffer.

Returns: Handle to the loaded vertex array object.

Note: Not all backends support this, so check capabilites before using.

Implemented in Cogs::BuffersGLES30, and Cogs::BuffersCommon.

◆ loadVertexBuffer()

virtual VertexBufferHandle Cogs::IBuffers::loadVertexBuffer	(	const void *	vertexData,
		const size_t	count,
		const VertexFormat &	vertexFormat
	)

pure virtual

Loads a new vertex buffer and populates it with the given data.

The size of the buffer (if given) must be at least the size of a vertex in the given vertexFormat times count.

Parameters

vertexData	Pointer to vertex data in memory, or nullptr to initialize an empty vertex buffer.
count	Number of vertexes in the vertex data.
vertexFormat	Format of the vertexes in the given memory buffer.

Returns: Handle to the loaded vertex buffer, InvalidHandle if the operation failed.

Implemented in Cogs::BuffersNull, Cogs::BuffersWebGPU, Cogs::BuffersGL20, Cogs::BuffersD3D11, Cogs::BuffersD3D12, Cogs::BuffersGLES30, and Cogs::BuffersVK.

Referenced by Cogs::Core::Image360::RendererExtension::initialize(), and Cogs::Core::Volumetric::OctRenderer::initialize().

◆ releaseBuffer()

virtual void Cogs::IBuffers::releaseBuffer ( BufferHandle bufferHandle )

pure virtual

Releases the buffer with the given bufferHandle.

Parameters

bufferHandle Valid handle to a previously created buffer.

Implemented in Cogs::BuffersD3D11, Cogs::BuffersD3D12, Cogs::BuffersGLES30, Cogs::BuffersNull, Cogs::BuffersGL20, Cogs::BuffersVK, and Cogs::BuffersWebGPU.

◆ releaseIndexBuffer()

virtual void Cogs::IBuffers::releaseIndexBuffer ( IndexBufferHandle indexBufferHandle )

pure virtual

Releases the index buffer with the given handle.

Parameters

indexBufferHandle Valid handle to a previously created index buffer.

Implemented in Cogs::BuffersD3D11, Cogs::BuffersD3D12, Cogs::BuffersGLES30, Cogs::BuffersNull, Cogs::BuffersGL20, Cogs::BuffersVK, and Cogs::BuffersWebGPU.

◆ releaseInputLayout()

virtual void Cogs::IBuffers::releaseInputLayout ( InputLayoutHandle inputLayoutHandle )

pure virtual

Releases the input layout with the given inputLayoutHandle.

Parameters

inputLayoutHandle Valid handle to a previously created index buffer.

Implemented in Cogs::BuffersNull, Cogs::BuffersVK, Cogs::BuffersWebGPU, Cogs::BuffersD3D11, Cogs::BuffersD3D12, Cogs::BuffersGLES30, and Cogs::BuffersGL20.

◆ releaseResources()

virtual void Cogs::IBuffers::releaseResources ( )

pure virtual

Releases all allocated buffer resources.

Implemented in Cogs::BuffersD3D11, Cogs::BuffersD3D12, Cogs::BuffersGLES30, Cogs::BuffersNull, Cogs::BuffersGL20, Cogs::BuffersVK, and Cogs::BuffersWebGPU.

◆ releaseVertexArrayObject()

virtual void Cogs::IBuffers::releaseVertexArrayObject ( VertexArrayObjectHandle vertexArrayObjectHandle )

pure virtual

Releases the vertex array object with the given handle.

Parameters

vertexArrayObjectHandle Valid handle created by loadVertexArrayObject.

Implemented in Cogs::BuffersGLES30, and Cogs::BuffersCommon.

◆ releaseVertexBuffer()

virtual void Cogs::IBuffers::releaseVertexBuffer ( VertexBufferHandle vertexBufferHandle )

pure virtual

Release the vertex buffer with the given handle.

The data is removed from GPU memory.

Parameters

vertexBufferHandle Valid handle to a previously created vertex buffer.

Implemented in Cogs::BuffersD3D11, Cogs::BuffersD3D12, Cogs::BuffersNull, Cogs::BuffersGL20, Cogs::BuffersGLES30, Cogs::BuffersVK, and Cogs::BuffersWebGPU.

◆ retrieveSubBuffer()

virtual void Cogs::IBuffers::retrieveSubBuffer	(	void *	data,
		BufferHandle	source,
		const size_t	offset,
		const size_t	size
	)

pure virtual

Retrieves the contents of a buffer.

Parameters

data	Pointer to where the data should be stored.
offset	The offset in bytes inside the buffer from where to retrieve data.
size	The number of bytes to retrieve from the buffer.

Implemented in Cogs::BuffersD3D11, Cogs::BuffersNull, Cogs::BuffersWebGPU, Cogs::BuffersD3D12, Cogs::BuffersGL20, Cogs::BuffersGLES30, and Cogs::BuffersVK.

The documentation for this struct was generated from the following file:

D:/a/1/s/Cogs/Cogs.Rendering/Source/IBuffers.h
