Interface for modules implementing custom picking. More...

#include <RayPick.h>

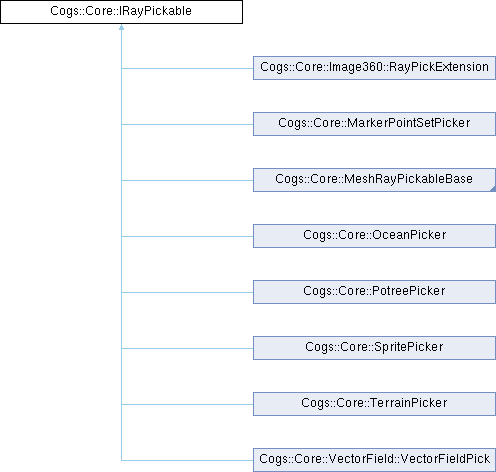

Inheritance diagram for Cogs::Core::IRayPickable:

Public Types
enum struct	Order : int32_t { Default = 0 , Last = std::numeric_limits<int32_t>::max() }
	Specifies run-order of picking extensions when that is needed. More...

Public Member Functions
	IRayPickable (Order order=Order::Default)

virtual COGSCORE_DLL_API bool	pickCamera (Context *context, const CameraComponent &camera, const glm::vec2 &queryClip, float rayLength, float rayRadius, PickingFlags pickingFlags, PicksReturned returnFlag, const RayPicking::RayPickFilter &filter, std::vector< RayPicking::RayPickHit > &hits)=0
	Do a ray pick from a normalized screen space position in the camera direction and return all hits.

virtual COGSCORE_DLL_API bool	pickRay (Context *, const glm::vec3 &, const glm::quat &, float, float, PickingFlags, PicksReturned, const RayPicking::RayPickFilter &, std::vector< RayPicking::RayPickHit > &)
	Do a ray pick from a position and orientation in world space and return all hits.

Public Attributes
Order	order = Order::Default

Detailed Description

Interface for modules implementing custom picking.

Definition at line 139 of file RayPick.h.

Member Enumeration Documentation

◆ Order

enum struct Cogs::Core::IRayPickable::Order : int32_t

strong

Specifies run-order of picking extensions when that is needed.

Definition at line 143 of file RayPick.h.

Constructor & Destructor Documentation

◆ IRayPickable()

Cogs::Core::IRayPickable::IRayPickable ( Order order = Order::Default )

inline

Definition at line 149 of file RayPick.h.

Member Function Documentation

◆ pickCamera()

virtual COGSCORE_DLL_API bool Cogs::Core::IRayPickable::pickCamera	(	Context *	context,
		const CameraComponent &	camera,
		const glm::vec2 &	queryClip,
		float	rayLength,
		float	rayRadius,
		PickingFlags	pickingFlags,
		PicksReturned	returnFlag,
		const RayPicking::RayPickFilter &	filter,
		std::vector< RayPicking::RayPickHit > &	hits
	)

pure virtual

Do a ray pick from a normalized screen space position in the camera direction and return all hits.

Parameters

queryClip	Picking query position in clip coords [-1,1]x[-1,1].
rayLength	Max length of picking ray, measured in world units.
rayRadius	Radius of picking picking ray, measured in pixels.

Implemented in Cogs::Core::HighlightRegionPicker, Cogs::Core::PotreePicker, Cogs::Core::MeshRayPickableBase, Cogs::Core::Image360::RayPickExtension, Cogs::Core::OceanPicker, Cogs::Core::TerrainPicker, Cogs::Core::VectorField::VectorFieldPick, Cogs::Core::SpritePicker, and Cogs::Core::MarkerPointSetPicker.

◆ pickRay()

virtual COGSCORE_DLL_API bool Cogs::Core::IRayPickable::pickRay	(	Context *	,
		const glm::vec3 &	,
		const glm::quat &	,
		float	,
		float	,
		PickingFlags	,
		PicksReturned	,
		const RayPicking::RayPickFilter &	,
		std::vector< RayPicking::RayPickHit > &
	)

inlinevirtual

Do a ray pick from a position and orientation in world space and return all hits.

Reimplemented in Cogs::Core::HighlightRegionPicker, Cogs::Core::PotreePicker, Cogs::Core::MeshRayPickableBase, and Cogs::Core::MarkerPointSetPicker.

Definition at line 168 of file RayPick.h.

Member Data Documentation

◆ order

Order Cogs::Core::IRayPickable::order = Order::Default

Definition at line 147 of file RayPick.h.

The documentation for this class was generated from the following file:

Source/Scene/RayPick.h
